Dock dilemma

desiibond

desiibond

Skilled
Display: 32" 2K resolution 144Hz display (will shift to 27" 4K 144Hz display in few months, probably dual displays).
Laptop1 : M2 Pro MBP
Laptop 2: Shitty office Dell laptop (no priority for refresh rate, thanks to security bloatware, this thing lags even at 30Hz).
Desktop: RTX3090 (may not route through dock).

I am thinking whether to get TS3Plus for $249 or TS4 for $450. I do not have any data copy needs. I just do not want to juggle wires to shift from Mac to office-laptop to Mac. One I shift to new house, will be using LAN with dock (300Mbps). I am leaning towards TS3Plus. Is there a better alternative? 144Hz HRR support is mandatory (2K and 4K).

Any particular reason you are going with a thunderbolt dock? AFAIK, a KVM switch would be much much cheaper and get the job done, granted they usually don't come with LAN.

Also, how many input types do the monitor support? Just HDMI, or do they have DP port/DVI, etc?

desiibond said:
I was checking spec sheets. Dell did not mention support for HRR while TS3 suppprts 2K HRR and single 144hz 4K
Click to expand...
There’s no way TS3 can support 4K at 144hz. Through DP 1.2 port maximum possible is 4K 60hz and tb3 probably support 4K 120hz through usbc to DP 1.4 converter.

I know lots people using wd22tb4 with apple silicon MacBook and LG C2/C3 at 4K 120hz with the help of usbc to Hdmi 2.1 cable based on VMM7100 or 6100 chipset.
dockshub.com

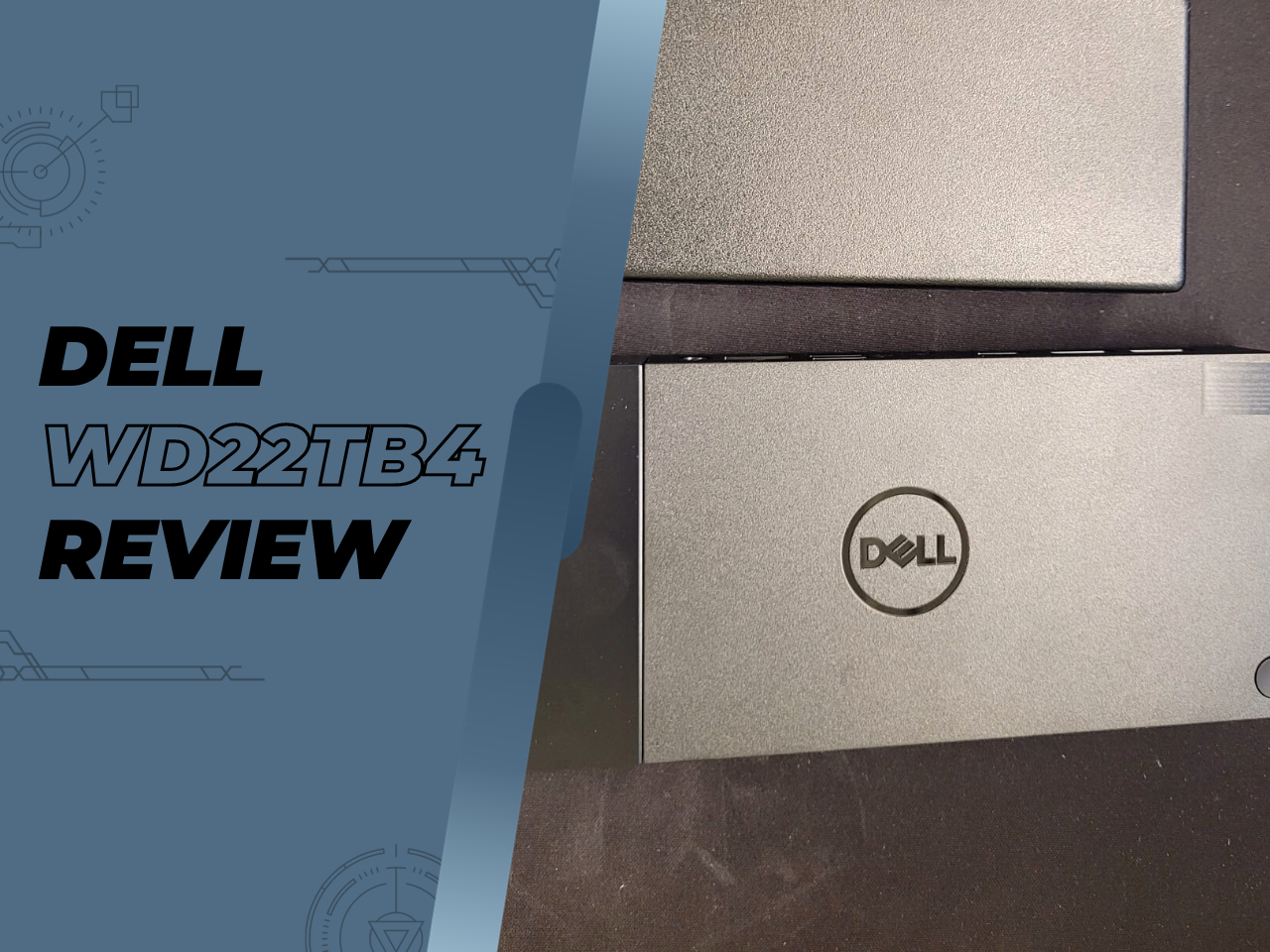

Dell WD22TB4 Review - The First Modular Thunderbolt 4 Dock

The Dell WD22TB4 Thunderbolt 4 Dock introduces a concept of modularity that stands out in the docking station market. This isn't just about connectivity; it's
dockshub.com dockshub.com

smnrock said:
There’s no way TS3 can support 4K at 144hz. Through DP 1.2 port maximum possible is 4K 60hz and tb3 probably support 4K 120hz through usbc to DP 1.4 converter.
Click to expand...
yeah. 4k@120 is possible with new controller it seems but then I do not see anyone actually showing that. My current display is 2K@144 and TS3 would do.
smnrock said:
I know lots people using wd22tb4 with apple silicon MacBook and LG C2/C3 at 4K 120hz with the help of usbc to Hdmi 2.1 cable based on VMM7100 or 6100 chipset.
dockshub.com

Dell WD22TB4 Review - The First Modular Thunderbolt 4 Dock

The Dell WD22TB4 Thunderbolt 4 Dock introduces a concept of modularity that stands out in the docking station market. This isn't just about connectivity; it's
dockshub.com dockshub.com
Click to expand...
One reason I am thinking of TS4 is support for 4k HRR with DP and with TypeC. Let me check a bit more about Dell dock. We have older dell docks in office and they are pretty good though at standard refresh rate. My next monitor would be Type C one.

where are you getting these docks from? haven't seen them anywhere here.
smnrock said:
Then why not DELL WD22TB4? Available for 15.5K and has two DP 1.4, 1 HDMI 2.0, two TB4 ports.
Click to expand...
its 25k on official site. where is it selling for 15? I need a new dock and would grab the dell if its indeed available for 15k.

altair21 said:
where are you getting these docks from? haven't seen them anywhere here.

its 25k on official site. where is it selling for 15? I need a new dock and would grab the dell if its indeed available for 15k.
Click to expand...
ltonlinestore.com

Dell WD22TB4 Thunderbolt Docking – Rs.15500 – LT Online Store

ExpressCharge technology You'll experience power delivery of up to 130W on Dell devices with ExpressCharge technology i that enables: 80% charge in one hour i 35% charge in just 20 minutes i Future-made design Swappable module lets you upgrade with ease to meet the needs of your IT...
ltonlinestore.com ltonlinestore.com

altair21 said:
the store looks pretty sketchy ngl, have you ordered from it?
Click to expand...
yes i do.. ordered several items from them for the past two years. so far all good.
Even TPS Tech has it for 16.6K

www.tpstech.in

Buy Dell WD22TB4 Thunderbolt Docking Station - tpstech.in

Buy Dell WD22TB4 Thunderbolt Docking Station at best price in India. Dell Dock offers the greatest compatibility across Dell Commercial laptops. Comes with Dell Express Charge allows you to charge up to 80% in one hour. Buy now on tpstech.in with best offers, specs, free deliver, No-cost EMI...
www.tpstech.in www.tpstech.in

Personally i got it from ltonlinestore since it was 1K cheaper.

altair21 said:
the store looks pretty sketchy ngl, have you ordered from it?
Click to expand...
Quite reliable, esp for b2b oriented products like this one.

On a side note, Most PC peripherals will typically be cheaper outside amazon given the significant amazon fee and the fairly high frivolous , or worse fake return rates.
This is also the reason most PC internals (eg SSD/ RAM etc) are now converting to non-returnable on amazon - which is probably a good thing
